How Smart PCB Vertical Buffer Solve SMT Line Bottleneck & Speed Mismatch Issues

Introduction

Most SMT production lines suffer from unbalanced machine tact time, causing frequent line stopping, PCB stacking, and idle equipment. Fast upstream machines such as screen printers often feed PCBs faster than downstream AOI or inspection machines can process, resulting in board congestion, waiting downtime, and even board scratches. Smart PCB buffer stations have become essential peripheral equipment to balance line speed, absorb tact time differences, and achieve continuous unmanned production. This article analyzes how Vanstron intelligent buffer stations stabilize SMT line operation and maximize overall line utilization.

1. Solve Line Speed Mismatch and PCB Stacking

How It Works

Different SMT devices have distinct processing speeds. Without buffer zones, the entire line must follow the slowest station, severely limiting throughput. Vanstron multi-layer PCB buffer stations provide dynamic board storage space, temporarily storing excess PCBs when downstream stations are busy and releasing stored boards when the line is free.

Application Example

In high-volume consumer electronics production, SPI and AOI inspection often require longer processing time. Vanstron buffer machines effectively isolate speed differences, preventing upstream screen printing and placement machines from frequent stop-and-go operation.

2. Support Unmanned Continuous Production During Short Downtime

How It Works

Workshop micro-stop events such as component replenishment, nozzle cleaning, and program switching will cause temporary line stagnation. Traditional lines must stop feeding, resulting in low OEE. Vanstron smart buffers store sufficient PCB inventory during normal operation, supporting continuous downstream production during short upstream downtime.

Benefits

• Avoid frequent line reset and restart

• Improve overall equipment efficiency significantly

• Reduce manual board transferring intervention

3. Intelligent Board Sorting and Flexible Storage Management

How It Works

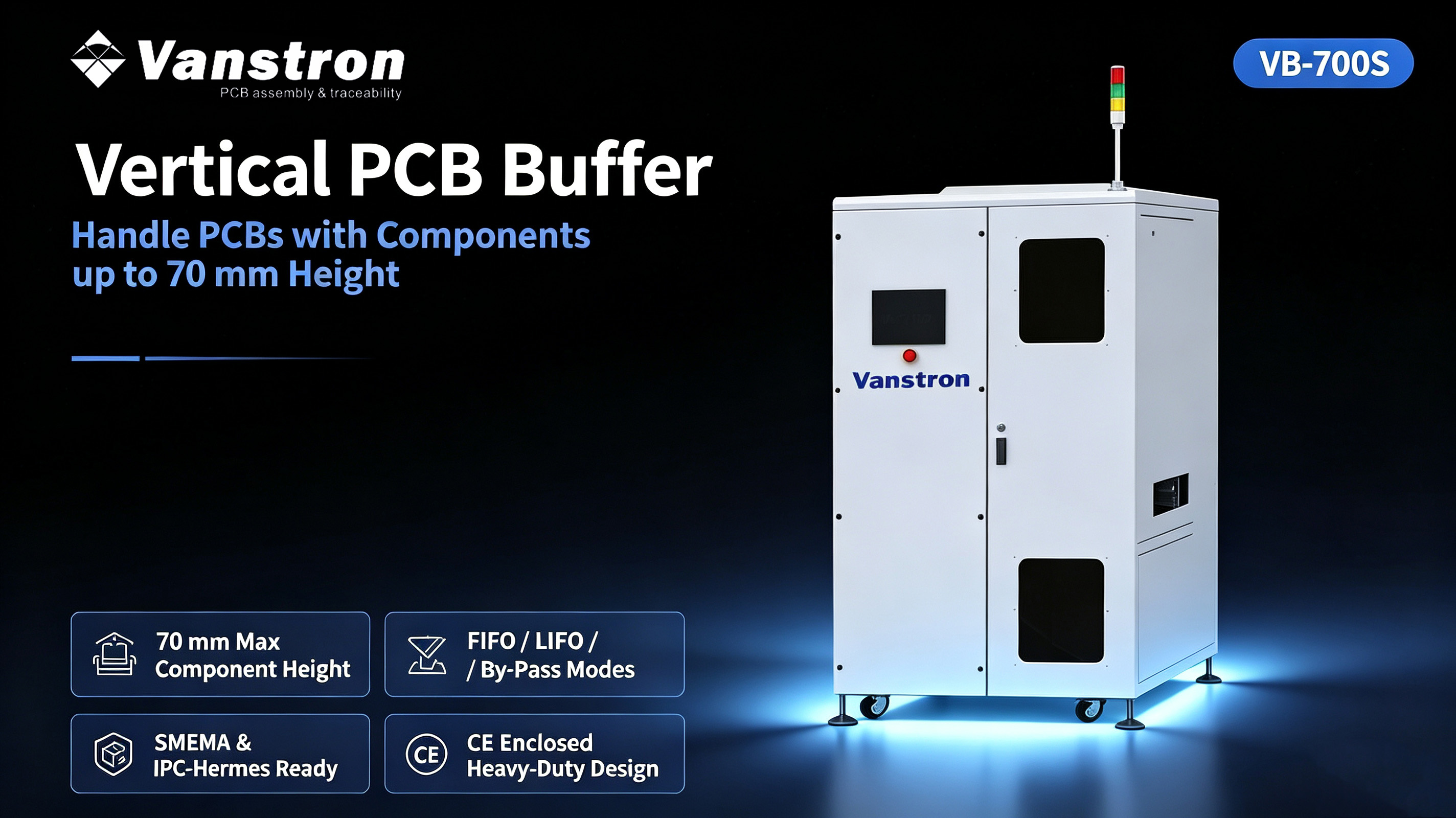

Vanstron buffer stations support FIFO (First In First Out) and LIFO (Last In First Out) flexible switching, adapting to different process requirements such as solder paste stabilization time and curing waiting time. The system automatically counts stored boards and displays real-time storage capacity.

Production Value

Factories can flexibly arrange production rhythms according to process specifications, avoiding quality risks caused by disordered PCB queuing and inconsistent waiting time.

4. Full SMEMA Compatibility for Automatic Line Linkage

How It Works

Equipped with standard SMEMA handshake interface, Vanstron buffer stations realize real-time signal interaction with upstream and downstream equipment. When the buffer is full, it automatically sends a stop signal to the front machine; when empty, it triggers feeding signals to resume production.

Advantages

No manual parameter adjustment is required during line operation, realizing fully automatic closed-loop flow control and avoiding board piling or empty line running.

5. Reduce PCB Surface Damage and Contamination Risks

How It Works

Mass PCB stacking and manual transferring are the main causes of board scratches, tin extrusion and dust contamination. Vanstron buffer equipment adopts anti-static flat conveyor and layered independent storage design, ensuring zero friction damage during PCB storage and transmission.

Key Benefits for SMT Factories

• Higher OEE: Eliminate line stop loss caused by speed mismatch

• Zero Board Damage: ESD-safe transmission protects bare and soldered PCBs

• Labor Saving: Support long-term unmanned operation

• Strong Compatibility: Fit all standard SMT production line layouts

Conclusion

Balanced tact time and continuous stable operation are the core goals of modern smart SMT factories. Intelligent PCB buffer stations solve the chronic pain point of unbalanced line speed, greatly improving production continuity and equipment utilization. Vanstron provides standardized and customized buffer solutions for different line layouts, helping electronics manufacturers achieve higher productivity and more stable production quality.
