Vanstron Multi Magazine Loader & Multi Magazine Unloader: High‑Volume PCB Handling Solutions for Modern SMT Production

Overview

High‑mix, high‑volume SMT manufacturing demands robust, automated PCB material handling to eliminate manual intervention, reduce board‑damage risks, and sustain continuous line throughput. Manual magazine exchange and board feeding create frequent production bottlenecks, introduce human‑induced defects, and increase operator workload in high‑speed electronics assembly environments.

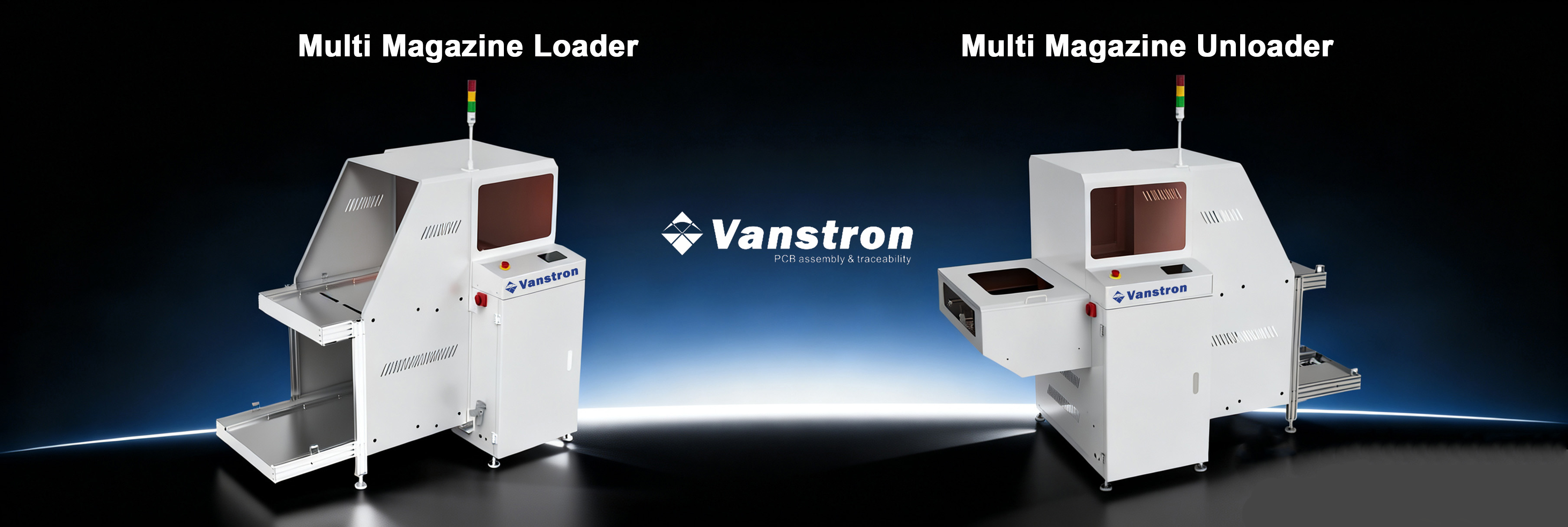

Vanstron’s Multi Magazine Loader and Multi Magazine Unloader form a matched front‑end and back‑end handling ecosystem, purpose‑built for SMT and AI assembly lines. The multi‑magazine loader sits at the very start of your SMT line, automatically feeding PCBs from stacked magazines to downstream equipment. The complementary multi‑magazine unloader is deployed at line end, receiving finished PCBs and stacking them into empty magazines. Both platforms support up to four standard magazines (expandable to five for unloader), deliver SMEMA‑compliant connectivity, and offer rich digital communication options for smart‑factory integration, making them foundational automation assets for mid‑to‑large‑scale PCB assembly operations.

Vanstron Multi Magazine Loader for SMT / PCB

Core Application & Working Principle

Positioned as the first station of an SMT production line, the Multi Magazine Loader automates PCB feeding for high‑volume manufacturing scenarios where continuous magazine supply is required. Operators load full PCB magazines at an ergonomically optimized low‑level access point from the machine front. The system extracts PCBs one‑by‑one via precision stepper‑motor pusher mechanism, transferring boards onto the conveyor interface of downstream SMT equipment such as screen printers or dispensers.

With native capacity for 4 magazines (Top 1 + Down 2 + Middle 1), the machine enables magazine hot‑swap without halting line operation. Magazine change‑over cycle is 30 seconds as standard, configurable down to 15 seconds as an optional upgrade to minimize production interruptions during magazine replenishment. This design removes the downtime associated with single‑magazine loaders and supports non‑stop feeding for high‑throughput assembly.

Key Technical Features

• Mitsubishi PLC control architecture: Delivers stable, repeatable motion sequence control, reliable fault detection and alarm handling for long‑shift industrial operation.

• Stepper‑motor‑driven pusher: Adjustable centre‑aligned pusher positioning improves board transfer stability, minimising scratches, bending or mechanical stress on thin or populated PCBs.

• User‑friendly touch‑screen HMI: Intuitive parameter setup for pitch selection, transfer recipes, status monitoring and manual/auto mode switching.

• Tower‑light status indicator: Visual real‑time feedback of run, warning and fault conditions for shop‑floor operators.

• Motor‑driven magazine‑platform infeed/outfeed: Automatic magazine shuttle movement; magazines can also be exchanged from machine rear for flexible‑layout integration.

• ESD‑safe flat conveyor belt: 3.8 mm PCB edge support, ESD protection to safeguard sensitive components against electrostatic discharge.

• Component clearance: Top 50 mm / Bottom 30 mm, supporting boards with pre‑mounted components.

• Lifting‑platform maximum load > 100 kg, handling fully‑loaded heavy magazine stacks reliably.

• SMEMA standard interface: Plug‑and‑play compatibility with mainstream SMT equipment from multiple vendors.

• CE safety certification: Full safety enclosure covers for operator protection in production environments.

Communication & Smart‑Factory Optional Upgrades

Configure the loader to match your factory‑automation roadmap with multiple interface selections for automatic conveyor‑width adjustment and host‑system interconnection:

1. RS‑485 communication with follow‑me automatic width adjustment

2. Motorised width adjustment

3. Center‑master software with Ethernet‑based auto‑width tuning

4. IPC Hermes (IPC‑HERMES‑9852) communication protocol for modern M2M data exchange

5. Ethernet TCP/IP connectivity for host‑MES integration

Model‑Range Specifications

Common baseline parameters:

• Transfer height: 900 mm ± 50 mm (SMT industry‑standard conveyor height)

• Standard transfer direction: Left‑to‑right

• Power input: 110 V / 220 V single‑phase, 50‑60 Hz

Vanstron Multi Magazine Unloader for SMT / PCB

Core Application & Working Principle

Installed at the downstream end of SMT or AI assembly lines, the Multi Magazine Unloader receives completed PCBs from upstream equipment and automatically stacks them into target magazines. Incoming PCBs are captured by the unloader’s input conveyor; a precision‑engineered pusher inserts each board into magazine slots. The magazine indexing system advances slot‑by‑slot after each successful board‑loading cycle.

Standard magazine capacity is 4 magazines (Top 1 + Middle 1 + Down 2), with optional upgrade to 5 magazines for extended unattended operation. Magazine change‑over time is 30 seconds (optional 15 s fast‑swap). Carefully tuned pusher kinematics prevent PCB collision or damage during insertion, lowering assembly reject rates. The unit integrates automatic board counting and fault‑alarm functions, which are essential attributes for fully‑automated closed‑loop SMT production lines.

Key Technical Features

• Total‑enclosure CE‑compliant safety covers for operator protection.

• Adjustable pitch range: 10 mm up to 80 mm, supporting diverse magazine slot configurations.

• Dual operation modes: Automatic production mode and manual mode for setup, maintenance and troubleshooting.

• ESD flat belt conveyor with 3.8 mm PCB edge support, anti‑static protection for assembled PCBA.

• Component clearance: Top 50 mm / Bottom 30 mm, accommodating populated assembled boards.

• Lifting‑platform maximum load > 150 kg to handle heavy full‑output magazine stacks.

• Conveyor direction configurable Left‑to‑Right or Right‑to‑Left; fixed rail can be set front‑side or rear‑side to match line layout requirements.

• Standard SMT conveyor height: 900 mm ± 50 mm; custom heights available for AI‑process integration upon request.

• Mitsubishi PLC control system, touch‑screen HMI, multi‑colour tower‑lamp status notification.

• SMEMA interface for seamless interoperability with upstream SMT machinery.

• Air‑supply requirement: 5 kgf/cm²; power: 110 V / 220 V single‑phase 50‑60 Hz.

Communication & Smart‑Factory Optional Upgrades

Identical optional communication packages as the multi‑magazine loader, enabling matched end‑to‑end line digitalisation:

1. RS‑485 communications (follow‑me automatic width adjustment)

2. Motorised width adjustment

3. Center‑master software via Ethernet (automatic width adjustment)

4. IPC Hermes communication interface

5. Ethernet TCP/IP communication for host‑system connection

Model‑Range Specifications

Business & Operational Benefits of Deploying Vanstron Multi‑Magazine Loader‑Unloader Pair

1. Boost line uptime for high‑volume production: Four‑magazine capacity extends unattended runtime, reduces frequency of operator magazine swaps, and minimises line‑stop events caused by empty or full‑magazine conditions.

2. Lower PCB defect rates: Precision‑controlled stepper‑motor pushers, ESD‑safe transport and gentle board‑transfer mechanics cut mechanical damage and electrostatic‑related failures compared to manual handling.

3. Flexible for high‑mix manufacturing: Wide PCB‑size coverage from 50 × 50 mm up to 535 × 460 mm; selectable pitch and optional auto‑width‑adjustment features streamline product change‑over.

4. Legacy‑ready and future‑proof connectivity: Native SMEMA compatibility works with your existing equipment fleet. Optional IPC‑Hermes and TCP/IP‑based interfaces pave the path toward MES‑connected smart‑factory operation.

5. Ergonomic shop‑floor design: Front‑side magazine access lowers operator physical workload; tower‑light status indicators simplify fault diagnosis on the production floor.

6. Proven safety compliance: CE‑certified mechanical safety enclosures reduce workplace hazards for assembly‑line staff.

Ideal Application Scenarios

• High‑volume consumer‑electronics SMT assembly lines

• Automotive PCB manufacturing requiring stable traceability options

• Industrial control‑board production with mixed‑size PCB batches

• AI through‑hole insertion production lines

• Factories pursuing incremental automation upgrades towards Industry 4.0

Summary

Vanstron Multi Magazine Loader and Multi Magazine Unloader deliver robust, scalable PCB handling solutions that anchor the material‑handling workflow at the start and end of SMT lines. Built on proven Mitsubishi‑PLC control, multi‑magazine architecture, flexible mechanical adjustments and comprehensive communication options, these machines balance today’s high‑volume production needs with tomorrow’s smart‑factory upgrade path. Whether you need a standalone loader, standalone unloader, or a matched pair for full‑line automation, Vanstron offers multiple size variants to cover nearly the full spectrum of modern PCB dimensions.
