Vanstron UV Curing Ovens: High‑Performance Inline Curing Solutions for Industrial Coating Lines

In modern electronics manufacturing, conformal coating, adhesive bonding and solder mask processing set critical benchmarks for product reliability. Traditional thermal curing workflows rely on long‑duration heating cycles, which create major bottlenecks: extended dwell time on production lines, excessive energy draw, risk of thermal damage to temperature‑sensitive components, and high volatile‑organic‑compound (VOC) outputs that complicate environmental compliance. As factories migrate toward high‑speed inline production, UV photopolymerization has emerged as the preferred alternative, delivering instant cross‑linking of UV‑reactive materials while preserving substrate integrity. Vanstron’s UV Curing Ovens, purpose‑built for coating‑line integration, bring robust, repeatable UV curing performance to PCB assembly and advanced electronic manufacturing environments.

Understanding UV Curing for Coating‑Line Applications

UV curing operates on photochemical principles: photoinitiators embedded within coatings, adhesives or solder‑mask compounds absorb targeted ultraviolet energy and trigger rapid molecular cross‑linking, transforming liquid formulations into fully solid protective films within seconds. Unlike thermal processes that depend on solvent evaporation and sustained heat input, UV curing completes polymerization at near‑ambient temperatures. This fundamental difference unlocks multiple operational advantages for automated coating lines: drastically compressed cycle times, sharply reduced energy consumption, minimal thermal stress on delicate PCBA assemblies, and substantially lower VOC generation to support green‑manufacturing targets.

However, real‑world UV curing performance is not determined by lamp hardware alone. Uniform irradiance distribution, wavelength matching to coating chemistry, precise conveyor synchronization, effective thermal management, and strict UV light containment are all essential to avoid incomplete cure, shadow‑area defects, component overheating, or workplace‑safety hazards. Many off‑the‑shelf UV systems struggle under continuous high‑volume inline conditions: lamp output drifts over runtime, focal distances cannot adapt to varying component heights, and mechanical interfaces fail to connect seamlessly with existing conformal‑coating equipment. Vanstron’s ExplorCuring UV Oven platform addresses these industry pain points through co‑engineered mechanical design, premium Heraeus Fusion® microwave lamp technology, and full production‑line interoperability.

Key Machine Features & Inline‑Production Capabilities

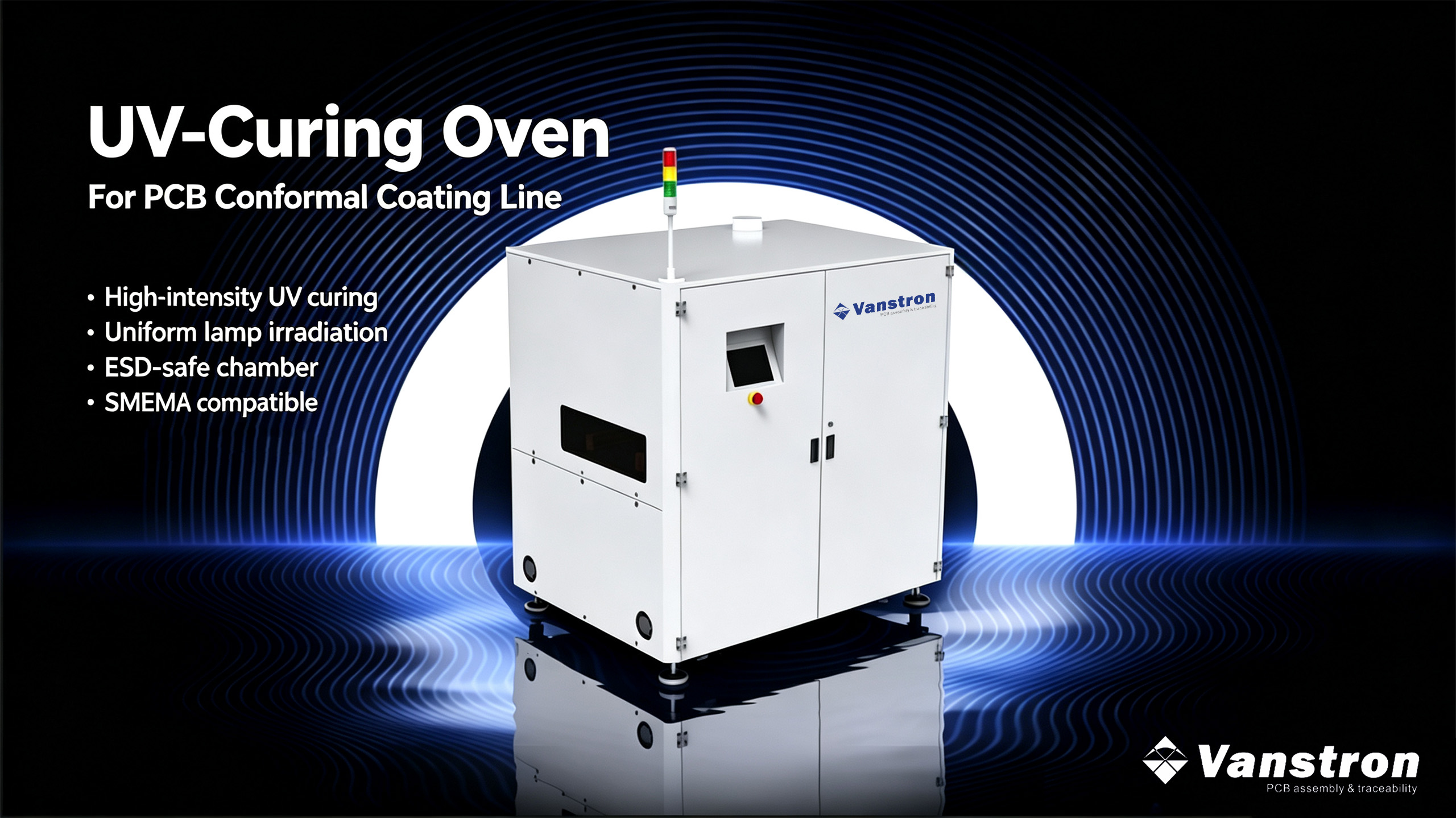

Vanstron UV Curing Ovens are engineered as true inline processing stations, built to drop into automated coating lines without extensive line rework.

Conveyor & Material Handling

The SMEMA‑compatible pin‑chain conveyor system is designed for printed‑circuit‑board transport, supporting board widths from 30 mm up to 460 mm and lengths up to 500 mm; smaller workpieces can be processed using carrier fixtures. Conveyor speed is infinitely adjustable across a range of 0‑5 m/min, synchronized with upstream coating equipment to maintain consistent exposure time as line throughput changes. Conveyor width adjustment comes as motorized standard, with optional software‑driven automatic width change for high‑mix manufacturing environments. Maximum component clearance reaches 50 mm on both top and bottom sides, accommodating assemblies with tall connectors and large surface‑mount components.

Safety & Containment Design

Full machine enclosure paired with automatic motor‑driven shutters at oven inlet and outlet blocks UV light leakage into the factory workspace, eliminating operator exposure risk. The system implements real‑time board‑jam detection: if a PCB stalls inside the curing tunnel, the controller immediately cuts UV lamp output and triggers alarms to prevent component damage. The complete machine holds CE certification, meeting European and international industrial‑equipment safety norms for electronics production floors.

Control & Human‑Machine Interface

A PLC‑based control system governs all process parameters: conveyor speed, shutter actuation states, UV lamp enable/disable, and equipment fault diagnostics. Operators access setup, monitoring and recipe storage via an integrated touch‑screen HMI. Multiple process recipes can be saved and recalled for rapid change‑over between different PCB products, coating materials or curing profiles. Standard SMEMA communication interfaces enable direct handshaking with upstream conformal‑coating machines, downstream handling equipment, and factory MES platforms for full production‑traceability workflows.

Mechanical Build & Maintainability

Constructed for continuous‑shift industrial operation, the machine frame forms a fully enclosed cabinet for quiet, clean operation. Large‑size service doors provide straightforward access to lamps, conveyor chains and air‑filter assemblies for routine maintenance tasks. Base unit weight starts at approximately 300 kg for single‑lamp configuration; each additional lamp module adds roughly 35 kg. External exhaust connections remove waste heat from the curing tunnel as part of facility ventilation planning.

Primary Industrial Applications

Vanstron inline UV Curing Ovens are deployed across electronics sectors where conformal protection and adhesive curing define product field reliability:

• PCB Conformal‑Coating Curing

The dominant use‑case: curing acrylic, urethane and other UV‑curable conformal coatings on assembled printed circuit boards. Complete, uniform cross‑linking delivers robust protection against moisture, dust, chemical contaminants and thermal cycling for automotive electronics, industrial controls, and IoT hardware. Inline UV processing eliminates slow thermal bake cycles, raising coating‑line throughput significantly.

• 2UV‑Adhesive Curing for Electronic Assembly

Curing structural and encapsulating UV adhesives used for component bonding, potting and fixture applications. Tunable UV intensity and exposure windows support both thin bond lines and thicker adhesive deposits, securing parts without subjecting assemblies to high heat.

• Solder Mask Curing

Processing UV‑reactive solder‑mask layers for bare and populated circuit boards, supporting high‑mix PCB production requirements.

• Automotive, Industrial & Aerospace Electronics

Manufacturing sectors demanding high product reliability standards benefit from consistent UV cure quality. Vanstron UV systems help manufacturers meet industry reliability specifications while keeping cycle times competitive for mid‑volume through high‑volume production runs.

Business & Process Benefits for Manufacturers

Higher Production Throughput

UV curing finishes material cross‑linking within seconds rather than minutes or hours. By removing thermal‑oven bottlenecks, inline UV curing raises overall line throughput and cuts work‑in‑progress inventory. Parts exit the curing tunnel fully cured and ready for downstream handling, testing or packaging with no post‑cure waiting period.

Improved Product Quality & Lower Scrap

Uniform UV energy distribution reduces defects originating from incomplete cure. Near‑ambient processing temperatures minimize thermal‑stress‑related failures of sensitive components. Instant polymerization also eliminates opportunities for airborne factory dust to settle onto wet coating surfaces, lowering reject rates caused by surface contamination.

Energy Efficiency & Sustainability

Compared to heat‑reliant thermal curing ovens, UV‑focused photochemical curing greatly cuts power consumption. UV‑curable coating formulations generate minimal VOC emissions, assisting factories in meeting environmental regulations and sustainability objectives.

Process Flexibility for High‑Mix Production

Recipe‑driven parameter storage, adjustable conveyor speed, interchangeable UV bulbs and optional top‑bottom curing capability allow a single UV oven to support many different PCB types and coating chemistries. Quick change‑over reduces downtime between product batches.

Reduced Total Cost of Ownership

Heraeus Fusion long‑life electrodeless UV lamps lower lamp‑replacement frequency. Robust mechanical construction and accessible service points keep maintenance overhead manageable for 24‑hour production schedules. Inline integration removes the need for separate batch‑processing staging areas, saving valuable factory floor space.

Integration Considerations

When adding Vanstron UV Curing Ovens to your coating line, several planning points should be reviewed with our application‑engineering team:

• Matching UV‑lamp wavelength selection to your specific conformal‑coating or adhesive material datasheet requirements.

• Confirming maximum PCB dimensions, component heights, and target line speed to define proper machine configuration.

• Arranging facility exhaust connections for heat extraction from the curing tunnel.

• Verifying SMEMA signal compatibility with existing upstream coating and handling equipment.

• Selecting between top‑only curing or optional dual‑sided top‑and‑bottom emitter hardware.

Vanstron technical support works with customers from project definition through commissioning, delivering process guidance to achieve stable, repeatable curing results for your unique products.

Closing

UV curing technology continues to reshape modern electronics manufacturing, balancing high throughput, product quality and environmental priorities. Vanstron UV Curing Ovens combine field‑proven Heraeus Fusion® UV light‑source technology with industrially hardened inline mechanical design, purpose‑built for seamless deployment within automated conformal‑coating production lines. Whether you aim to replace legacy thermal curing equipment, expand production capacity, or solve quality challenges with your current UV setup, Vanstron’s ExplorCuring platform delivers reliable, scalable curing performance for PCB and electronic‑assembly manufacturing.
