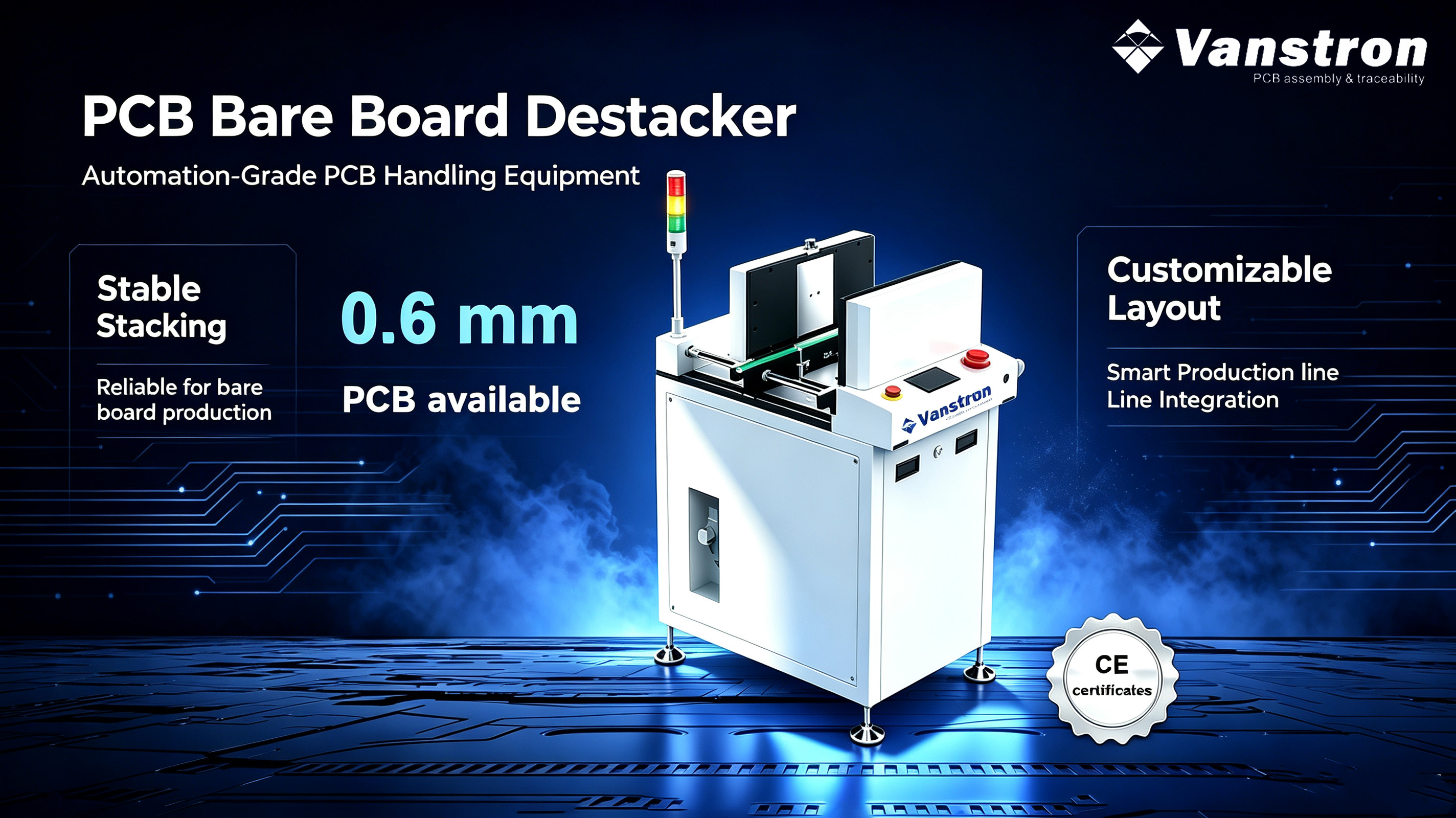

Vanstron DL‑460 Bare Boards Destacker: Optimize Your Front‑End SMT Production Workflow

Modern SMT manufacturing demands high‑reliability, low‑downtime material handling solutions to keep assembly lines running at peak efficiency. As a core front‑end unit for surface‑mount technology production, the Vanstron DL‑460 Bare Boards Destacker is purpose‑built to feed stacked bare PCBs into downstream SMT equipment with precision, gentleness and full line compatibility. Designed to eliminate manual board‑loading bottlenecks, this destacker separates single bare printed circuit boards from the bottom of a stack and transfers each board onto ESD‑safe conveyor belts for seamless hand‑off to subsequent processes.

Why Automated Bare PCB Destacking Matters for SMT Lines

Manual loading of bare PCBs at the start of an SMT line introduces multiple risks: inconsistent cycle timing, physical scratching or bending of thin circuit substrates, human error, and frequent production interruptions for board refilling. Thin‑wall PCBs down to 0.6 mm thickness are especially vulnerable to mechanical damage during handling. Integrating a dedicated bare‑board destacker removes these pain points. It maintains continuous board supply, protects valuable bare substrates, stabilizes takt time for the entire assembly line, and reduces operator workload at the line input station.

Vanstron’s DL‑460 adopts a unique separation‑cam mechanical principle: instead of picking boards from the top of the pile, the mechanism extracts one PCB from the bottom of the stack. Boards are softly lowered onto static‑dissipative flat belts, minimizing mechanical stress, scuff marks and edge chipping — critical for defect‑sensitive bare boards before solder paste printing or inspection steps. Installed at the very front of your SMT workflow, this machine reliably feeds bare boards to printers, SPI and other downstream SMEMA‑compliant machinery.

Core Machine Features & Operational Advantages

The DL‑460 bare boards destacker combines proven Mitsubishi PLC control with intuitive human‑machine interaction, balancing high‑speed cycling with process safety and flexibility.

• Dual‑mode operation: Software‑selectable Destacker Mode for unstacking stacked PCB magazines, plus By‑Pass Mode for direct board transit when destacking functionality is not required. This dual‑mode capability improves line versatility for mixed‑batch production.

• Ultra‑short adjustable loading cycle: PCB processing cycle ranges from 3 s to 7 s, tunable to match the throughput of your upstream‑downstream SMT equipment.

• Excellent thin‑board handling: Stable processing for PCB thickness starting at only 0.6 mm, covering board thickness spectrum up to 3.5 mm for general‑purpose bare‑board applications.

• Non‑stop board replenishment: Operators can top‑up PCB stacks without halting machine operation, delivering uninterrupted PCB charging and cutting unplanned line stops.

• Pre‑warning for low stack height: Built‑in pre‑signal alarm notifies staff when remaining PCB stack height drops to a predefined threshold, preventing unexpected material starvation.

• User‑friendly touch‑screen HMI: All parameter configuration, mode switching, fault diagnosis and status monitoring are centralized on the touch‑screen panel for straightforward daily operation.

• Precision width adjustment: Standard parallel width tuning via hand crank for smooth, gap‑consistent rail positioning; motorized width adjustment is available as an optional upgrade.

• Full‑door safety interlock: Every service access door is fitted with safety interlock hardware. Machine motion will stop immediately upon door opening, safeguarding maintenance and routine operator interaction.

• SMEMA‑compliant electrical interface: Native SMEMA signal compatibility enables plug‑and‑play integration with mainstream SMT brand equipment, supporting line‑wide equipment handshake and inter‑machine flow synchronization.

• CE safety certification: Compliant with European safety standards for industrial machinery, suitable for global manufacturing deployments.

Full Technical Specifications | DL‑460 Bare Boards Destacker

Rich Optional Communication & Automation Upgrades

For smart factory and Industry 4.0‑oriented SMT workshops, Vanstron supplies multiple optional communication packages to realize automatic width‑tracking adjustment (“follow‑me” function), where the destacker automatically adapts conveyor width following downstream equipment settings without manual re‑calibration.

1. RS‑485 communication option: Supports follow‑me automatic width adjustment via RS‑485 bus connection.

2. Motorized width adjustment: Electric‑driven rail width tuning, eliminating manual crank adjustment.

3. Center‑Master software with Ethernet: Host‑system connectivity over Ethernet for centralized production control and auto‑width sync.

4. IPC‑Hermes communication: Compliance with the IPC‑Hermes advanced SMT machine‑to‑machine communication standard for modern smart assembly lines.

5. Ethernet TCP/IP communication: TCP/IP‑based network connection for factory host integration and automatic width adaptation.

These optional features are highly valuable for high‑mix, high‑volume production environments, minimizing recipe‑changeover time and reducing human setup error during frequent PCB‑product switching.

Application Scenarios

Vanstron DL‑460 Bare Boards Destacker fits diverse electronics‑manufacturing use‑cases:

• Front‑end feeding for standard SMT assembly lines

• High‑mix PCB batch production

• Manufacturing environments handling ultra‑thin bare circuit boards

• Smart factory projects requiring Hermes / TCP‑IP host‑system interconnection

• Semiconductor‑related substrate pre‑processing workflows

• New‑line build‑out as well as retrofitting to upgrade existing SMT production setups

Final Value Summary

In SMT production, stable front‑end material feeding directly influences overall line OEE (Overall Equipment Effectiveness). The Vanstron DL‑460 bare‑board destacker merges gentle bottom‑stack separation mechanics, proven PLC control, robust safety architecture and expandable smart‑factory communication options. It protects delicate bare PCBs, cuts manual intervention, supports thin‑board handling, and seamlessly connects with your existing SMEMA‑compliant SMT machinery.

Whether you are constructing a brand‑new assembly line or seeking to replace ageing manual‑feed stations, this bare‑board destacker delivers consistent, repeatable bare‑board feeding performance for today’s demanding electronics‑manufacturing requirements.
